Optical Mirror Mounts
Optical Mirror Mounts
Kinematic Mirror Mounts

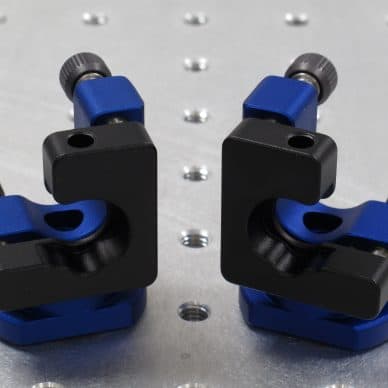

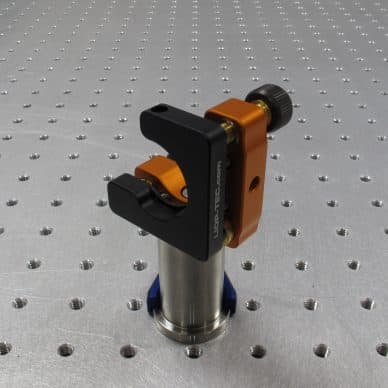

STAR Series – Kinematic Optical Mounts for general beam steering applications as well as for high precision OEM applications. Easily mounted on posts to suit a wide range of beam heights.
PLANET Series – Precision-machined from a single piece of treated stress-free aluminium, these kinematic mounts feature an integrated base plate and clamp directly to your optical table for exceptional rigidity and long-term alignment stability.

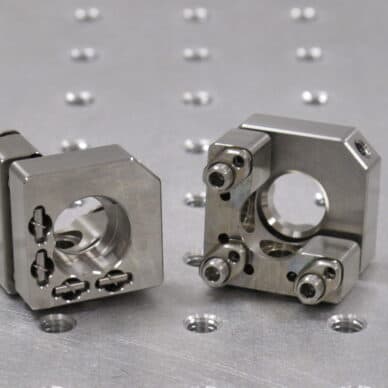

ASTEROID Series – This series offers high-quality optical mounts designed for high-precision applications, including OEM systems. All components are made from stainless steel to minimise thermal expansion and wear. Available with a locking system for the fine-thread screws to maintain long-term alignment stability..
What are Kinematic Mirror Mounts?
Kinematic mirror mounts are precision-engineered to securely hold mirrors and optical components while enabling fine, accurate alignment. Manufactured in Germany, Photonics Technologies is the exclusive UK distributor of the complete Opto-Mechanics range from Liop-Tec GmbH. Through this partnership, we deliver innovative, tailored solutions that ensure reliable implementation across research and industrial applications. These mounts are essential for optical experiments, beam steering, and high-precision setups.
Star Series SR050
SR050 - Compact small footprint version, primarily for 0.5" optics.
Read MoreStar Series SR100
SR100 - Most used series of mirror mounts, primarily for standard 1" optics.
Read MoreStar Series SR200
SR200 - Mounts designed for large optics
Read MoreAsteroid Optical Mirror Mount
Optical Mirror Mounts for high precision OEM applications
Read MorePlanet Series PL050
PL050 is a compact small footprint version, most useful for 0.5" optics.
Read MorePlanet Series PL100
PL100 - Series of mirror mounts, primarily used for standard 1" optics.
Read More
Gimbal Mirror Mounts
ANTARES – Gimbal Mirror Mount for large optics to specific customer requirements.
Gimbal Mirror Mounts
When precision and control are of the utmost importance, Gimbal Mirror Mounts are a stand-out ingenious tool enabling the manipulation of light with the highest level of accuracy. Gimbal mirror mounts are versatile devices and very essential, especially in photonics.
What are Gimbal Mirror Mounts?
Gimbal mirror mounts are mechanical assemblies designed to support and precisely orient mirrors and other optical components, what sets them apart is they have a two-axis rotation mechanism, allowing for independent adjustment of pitch and yaw angles. The flexibility of these optical mounts means users can finely tune the direction of reflected light with the highest level of precision. Gimbal mirror mounts are indispensable in optical setups and physics experiments.
