Reference Spectroscopic Cells
Reference Spectroscopic Cells

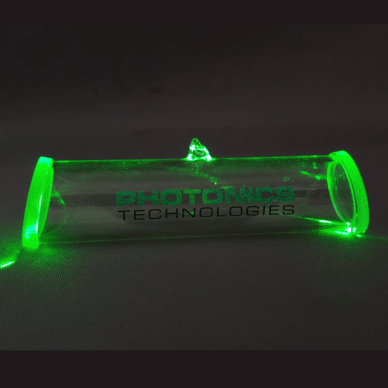

At Photonics Technologies, we supply a wide range of high-quality reference spectroscopic cells.
Our gas cells contain vapours of atomic elements or molecular compounds. Each of these gas cells has its own specific absorption spectrum.
Our range of spectroscopic cells is each available with a wide selection of high-purity atomic and molecular fillings and buffer gases.
These gas reference cells are often used in spectroscopic analysis and applications. Which include: calibration of wavelength meters, laser frequency stabilisation, and tunable diode laser calibration.

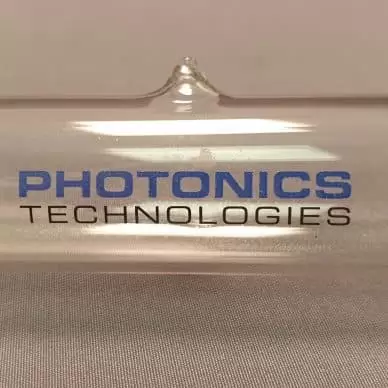

Photonics Technologies offers reference cells that are made from Pyrex or Quartz, and come in a range of available configurations. Alternatively, if you require a different reference spectroscopic cell configuration, please get in touch. Custom reference cells can be manufactured to suit your requirements.
The reference spectroscopic cells can be made from Pyrex or Quartz. They are available in the following materials and configurations:
- Borosilicate with flat windows attached parallel or angled
- Quartz with flat, high-quality fused silica windows attached parallel or angled
- Quartz with wedged, high-quality fused silica windows attached parallel or angled
- Quartz with flat, anti-reflective (AR) coated high-quality fused silica windows attached parallel or angled
The purity level of the natural elements, used in manufacturing all wavelength reference spectroscopic cells, is greater than 99%. It is distilled to an even higher purity level during the filling process.
All spectroscopic cells are helium leak checked and baked under vacuum to the 10-8 Torr range. This is done for a minimum of 24 hours, before they are filled with the selected element.
Vapour Reference Spectroscopic Cells
The vapour reference cells can contain natural: Rubidium (Rb), Rubidium Isotope 85 or 87, Caesium (Cs), Potassium (K), Sodium (Na), Iodine (I), and Water.
Our vapour reference cells can also be provided with a buffer gas of Helium, Xenon, Argon, Nitrogen, or Neon gases, at a pressure of your specification.
Gas Reference Spectroscopic Cells
The gas reference cells can contain Acetylene (Isotopes 12 and 13), Krypton, Hydrogen Cyanide (Isotopes 12 and 13), Carbon Monoxide (Isotopes 12 and 13), and Methane.
Hazardous goods regulations
The Photonics Technologies reference spectroscopic cells are subject to hazardous goods regulations. They must be shipped separately, using specifically regulated shipping methods, that require special shipping and handling charges.
Please note, that next-day delivery is not available, and the goods cannot be returned.
Contact Us
Can’t see what you want? Please contact us and detail your specific needs and we will have a reference spectroscopic cell manufactured for you at a reasonable price.
