Kinematic Optical Mirror Mounts Planet Series PL100
The PL100 is our standard mirror mount size, most useful for 1″ optics.
As with all our mirror mount series there is the option of using the adjuster head or an allen key for fine adjustments of the mirror mount. The mirror mount is available with 2 or 3 adjusters, the 3-adjuster option enabling precise horizontal positioning of the optic. Very precise adjustment of your optical component is possible because of the 170TPI (turns per inch) screw threads.
Factfile
- 170TPI fine tuning adjusters to give better resolution
- Screws in stainless steel M8x0.15mm
- Left and right handed version available
Options
Back plate – Open Left/Right, Standard or High Stability, 2 or 3 fine thread adjusters.
Front plate – 1/2″, 1″, 1.5″, 2″ closed , 1″ open, prism holder.
Available in blue, black, orange, green, yellow, red, purple, silver, or anthracite.
Also available with special coatings: Vacuum Suitable or Hard Anodized.

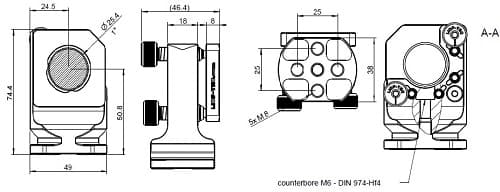

Diagrammatics
Sample: PL100-100-2S
Deliveries
2 weeks for Standard Blue colour components, we will advise delivery time on other colours and coatings.
