Sodium Reference Cell Sodium Reference Cells

The Photonics Technologies Sodium Reference Spectroscopic cells are available with Pyrex or Quartz windows and with high purity Potassium filling.

The Sodium Reference Cells come in a range of sizes, styles, and window materials. For specific sizes, and styles, please get in touch.

Please see the ‘factfile’ tab in the table below for the core details

Double-side anti-reflective (AR) coated windows are only available on spectroscopic cells made from quartz, with quartz or fused silica windows.  The AR coating centered at 780nm has a wavelength range from 730 to 830 nm with a reflectance of less than 0.5%.

Pyrex vapour reference cells are not available with wedged windows, but Pyrex windows can be attached at an angle.

For cells in stock and available for immediate delivery, please click on the ‘delivery’ tab in the table below

Due to the filling material, these cells are classed as Dangerous Goods for carriage by Air. Please contact us for a quote with shipping to your specific location.

If you require a specific cell not listed, please contact us for more information.

Price on Application

Factfile

Diameter:25mm
Optical Path Length:75mm
Windows:Pyrex, fused to body, 1.6mm thickness, 60/40 scratch/dig quality
Window Material:Borosilicate (Pyrex)
Window Type:Flat, parallel

Deliveries

4 weeks

In stock for immediate delivery:

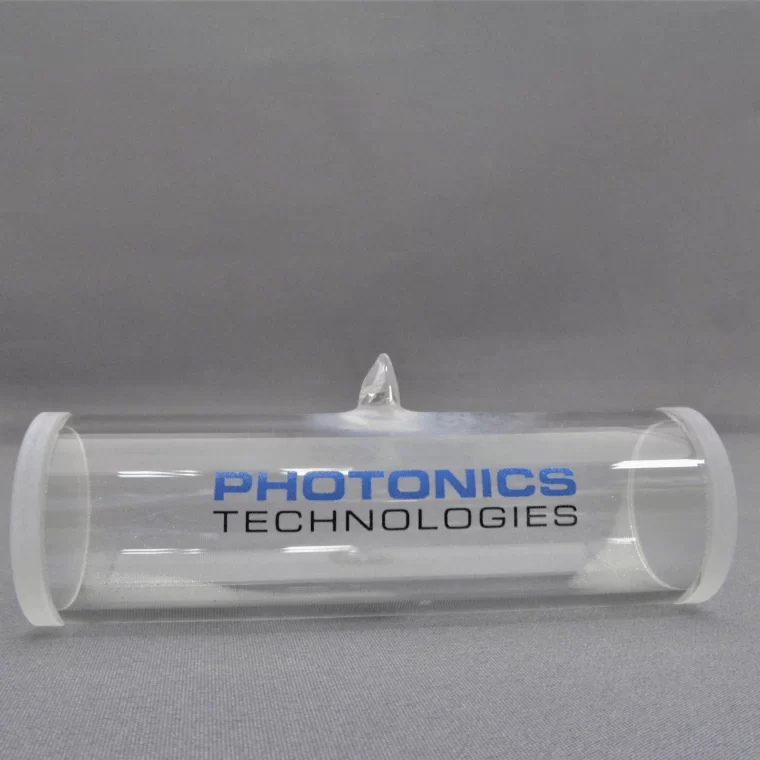

Pyrex Na Spectroscopy Cell  SC-NA-25×75-P

Fill MaterialSodium
Windows:Pyrex, fused to body, 1.6mm thickness, 60/40 scratch/dig quality
Window Type:Flat, parallel
Length:75mm internal length
