Vapour Reference Cells Iodine Reference Cells

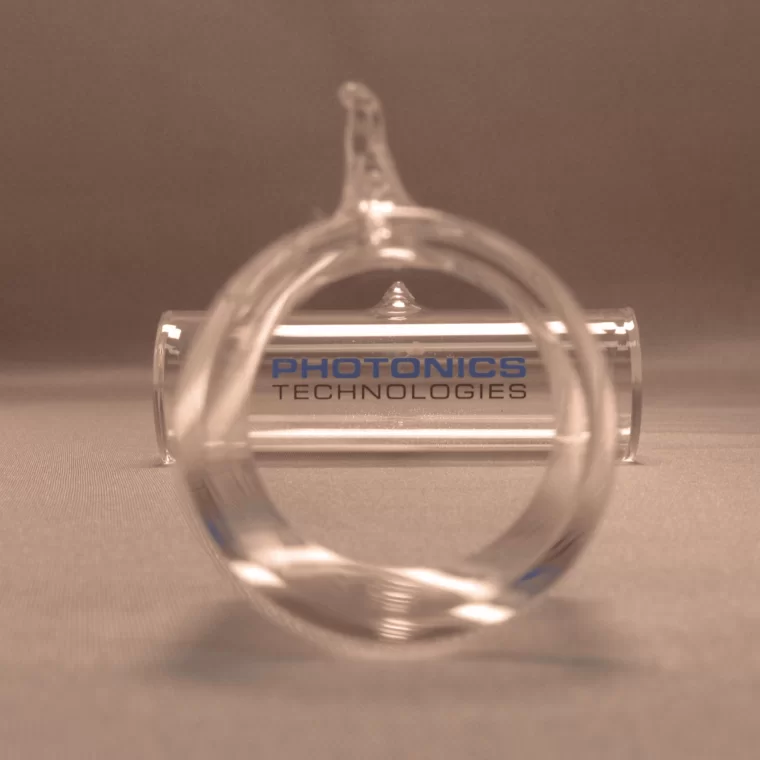

The Photonics Technologies Iodine Reference Spectroscopic cells are available in Pyrex or Quartz with high purity Iodine filling.
Design & Options:
A range of standard sizes, designs and buffer gasses are offered – some examples include:
Anti-reflective (AR) coated, wedged, or angled windows available only for Quartz cells
Buffer gas options: Ne, Ar, Xe, He, N filled to a specified pressure in Torr
Other cell geometries: Cubic cells and Brewster-angle cells
For more technical details, see ‘Options’ Tab below.
Stock Information:
For stock availability, please refer to the ‘Delivery’ tab. If you require a custom cell not listed, get in touch and we will be happy to discuss a tailor-made solution for your application.
Shipping Notice:
Due to the filling material, these cells are classed as “Goods Requiring Special Packaging” for carriage by Air. Please contact us for a quote with shipping to your specific location.
Options
Please see ‘Delivery’ for stock information
Quartz Spectroscopy Cells
| Description / Part Number: | SC-I2-(25x75-Q)-AR | SC-I2-(19x100-Q) |
|---|---|---|
| Cell Type | Quartz | Quartz |
| Outer Diameter: | 25mm | 19mm |
| Optical Path Length: | 75mm | 100mm |
| Stem Height: | <10mm | <10mm |
| Window Material: | UV Fused Silica | UV Fused Silica |
| Window Thickness: | 3mm | 3mm |
| Window Type: | Flat and parallel, FRIT to Body, AR coated windows of 500- 600nm range (both faces) | Flat and parallel, FRIT to body |
| Window Flatness: | λ/10 | λ/4 |
| Window Quality: | 40-20 Scratch & DIg | 60-40 Scratch & Dig |
Pyrex Spectroscopy Cells
| Description / Part Number: | SC-I2-(25x150-P) |
|---|---|
| Cell Type | Pyrex |
| Outer Diameter: | 25mm |
| Optical Path Length: | 150mm |
| Stem Height: | <10mm |
| Window Material: | Borosilicate (Pyrex) |
| Window Thickness: | 1.75mm |
| Window Type: | Flat and parallel, fused to body |
| Window Flatness: | λ/4 |
| Window Quality: | 60-40 Scratch & Dig |
Deliveries
In Stock for Quick Delivery
These products are currently in stock and available for immediate dispatch.
- SC-I2-(25×150-P)
- SC-I2-(25×100-P)
Awaiting Stock
Please contact us for expected availability.
Custom Design
Get in touch to discuss your custom requirements. We work closely with our customers to deliver tailored, high-quality solutions.
Delivery time :~6-8 weeks
