eLas Diode Laser

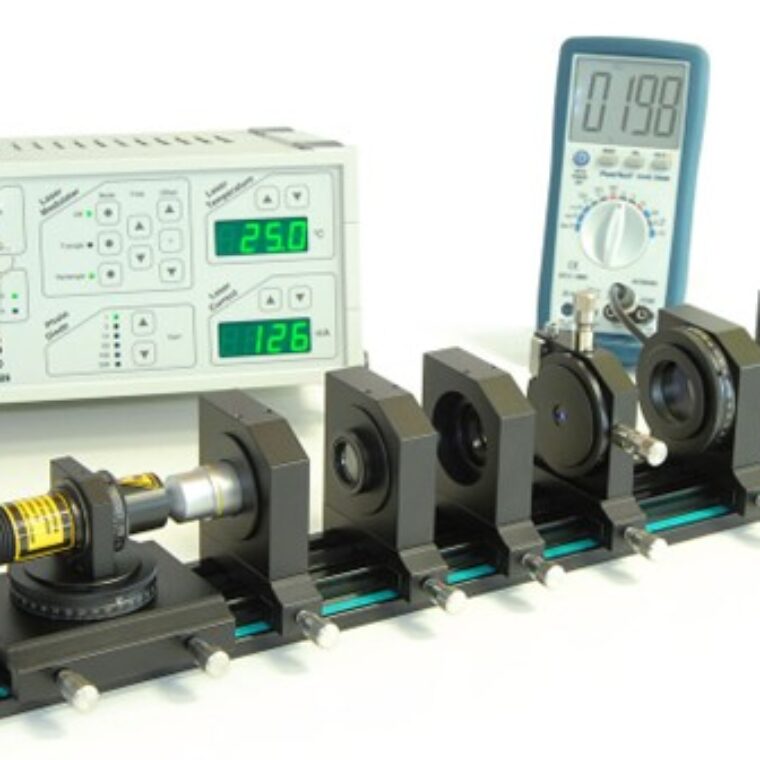

The Diode Laser kit includes everything you need to measure the spatial distribution of laser diode emission using a 100 mW laser diode.
The current, temperature and current modulation of the diode can be adjusted on the versatile controller with integrated photo diode amplifier, enabling the design of multiple experiments, for example the dependency of the laser wavelength on the chip temperature and injection current.
A digital voltmeter is provided and can be connected to the internal amplifier of the laser diode controller to take measurements.
The kit includes a polarising filter mounted in a rotation unit, allowing students to investigate the dependency of the diode current on the polarisation of laser light. The relative output power of the diode may be measured as a function of the injection current to determine threshold current and slope efficiency. Absorption in an Nd:YAG crystal allows for additional experiments to examine the laser wavelength.
Example experimental investigations:
- Types of Laser Diodes
- Beam Profile
- Fast and Slow Axis
- Spectral Properties
- Laser Threshold
- Slope Efficiency
- Beam Shaping
- Polarization State
Factfile
Kit includes:
- Laser light source 100 mW @ 808 nm, stabilized temperature, in rotating holder
- Laser diode controller LDS 1200
- Flat rail 500 mm with scale
- Laser light collimator unit in holder
- 5 Pair of laser beam shape optics in holder
- Nd:YAG crystal in XY adjustment holder
- Polarization filter in holder
- PIN-photo detector in holder
- Digital voltmeter (3 ½ digits)
- Set of interconnection cables
- User manual
